I-ROF ye-Ectro-Optic Modulator 1550NM I-MAG
Inqaku
* Ukuphula okuphantsi kwelahleko
* Ibhendi ephezulu
* I-voltage ephantsi
* Ukukhetha ngokwezifiso
Isicelo
Iinkqubo ze-rof
⚫ Ukuhanjiswa kweqhosha
⚫ Iinkqubo zokuziva
⚫ Imozulu yecala
| Rof-Am uthotho | Rof-Am-07 | Rof-Am-08 | Rof-Am-10 | Rof-1-13 | Rof-Am-15 | |||
| Ukusebenza kwe-wavelength | I-780NM | I-850NM | I-1064nm | I-1310NM | I-1550NM | |||
| Bandwidth | I-10gz | I-10gz | 10/ 20Ghz | 2.5ghz | 50Ghz | I-10gz | 20ghz | I-40ghz |
| Ukufakwa kwelahleko | <5db | <5db | <5db | <5db | <4db | |||
| Ukuphela kwe-rationation @DC | >20db | >20db | >20db | >20db | >20db | |||
| VΠ @Rf (1khz) | <3V | <3V | <4v | <3.5v | <6V | <5v | ||
| VΠ @ Ibias | <3.5V | <3.5V | <5v | <5v | <8v | <7v | ||
Uku-odola ulwazi
| Rof | AM | XX | I-XXG | XX | XX | XX |
| Uhlobo: I-AMDnsilator yobunzima | Wavelethth: 07 ---- 780nm I-10--1060nm 13 --- 1310NM 15 --- 1500NM | Bandwidth: I-10gz 20ghz I-40ghz I-50gz
| Ukubeka iliso kwi-PD: I-PD - nge-PD | Uhlobo lwe-fiber nge-fiber: I-PP - pm / pm
| Isinxibelelanisi sokukhanya: Fa - fc / apc Fp --- fc / i-pc I-SP-Fight |
R-am-15-40g
I-Wavalength 1550NM 40GZ
| Iparameter | Isimboli | Imiz | Tyhu | Max | Iyunithi | ||||
| Iiparamitha ze-Optical | |||||||||
| Ukusebenza kwe-wavelength | l | I-1530 | 1550 | I-1565 | nm | ||||
| Ukufakwa kwelahleko | IL | 4 | 5 | dB | |||||
| Ilahleko yokuBuya | Orl | -45 | dB | ||||||
| Guqula indawo yokuphela kwenqanaba @DC | Er @ dc | 20 | 23 | 45 | dB | ||||
| Umyinge wokuphela kwento | Der | 13 | dB | ||||||
| I-fiber offical | Igaleloizibuko | IPanda PM Fujikura iSM | |||||||
| Izibuko lemveliso | IPanda PM Fujikura iSM | ||||||||
| Isinxibelelanisi sokukhanya | Fc / i-PC, fc / fc / apc okanye umsebenzisi ukucacisa | ||||||||
| Iiparamitha zombane | |||||||||
| I-bandwidth esebenzayo(-3DB) | S21 | 28 | 30 | Ghz | |||||
| Isiqingatha-save voltage vpi | RF | @ 50Kz |
| 4.5 | 5 | V | |||
| Bias | @ Ibias |
| 6 | 7 | V | ||||
| Ukulahleka kombane | S11 | -12 | -10 | dB | |||||
| Ukufakwa kwegalelo | RF | ZRF | 50 | W | |||||
| Bias | ZBias | 1M | W | ||||||
| Isinxibelelanisi sombane | V(f) | ||||||||
Umda weeMeko
| Iparameter | Isimboli | Iyunithi | Imiz | Tyhu | Max |
| Igalelo lamandla | Pkwi, max | I-DBM | 20 | ||
| Igalelo le-RF | I-DBM | 28 | |||
| I-bias voltage | Vbias | V | -15 | 15 | |
| Iqondo lokusebenza | Phezulu | ℃ | -10 | 60 | |
| Iqondo lokugcina | Tst | ℃ | -40 | 85 | |
| Umswakama | RH | % | 5 | 90 |

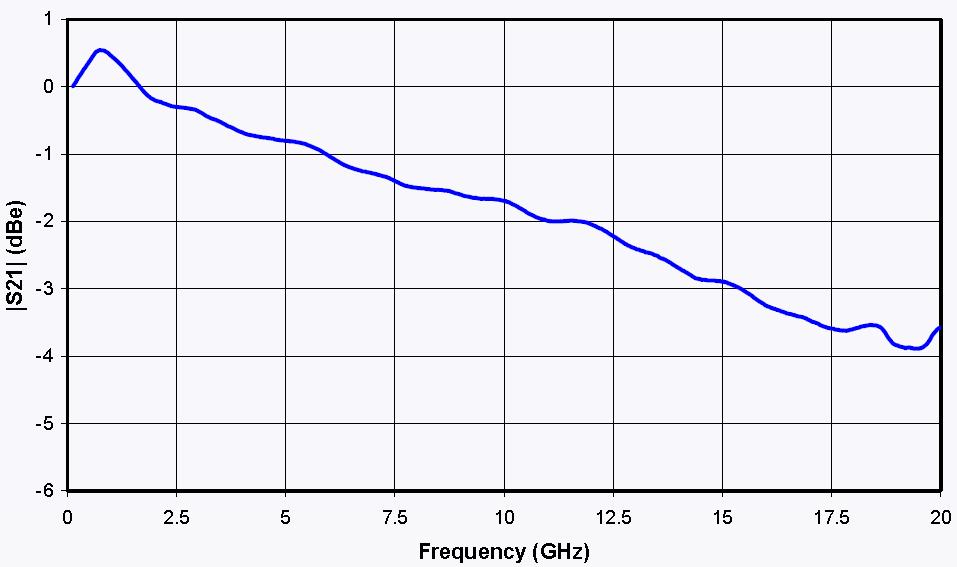

Ijika le-S21
& S11 curve
I-S21 & S11 & S11 curves
Umzobo wobume
| Izibuko | Isimboli | Phawula |
| Ngaphakathi | Izibuko lokukhanya | I-PM FIBER (125μm / 250 +) |
| Ngaphandle | Izibuko langaphandle | I-PM kunye ne-SMF ukhetho |
| RF | I-RF igalelo | I-SMA (f) |
| Bias | I-Bias ilawula izibuko | I-1,2 bias, 34-n / c |
I-rofea aptoelection ibonelela ngemveliso yemveliso ye-electro-optic, iimodyuli zesigaba, i-fotose, i-ampleeper, i-pids, i-qpber, i-qpber, i-fiber optic, ibhendi yamandla e-fiber I-Laser, i-Tuncay Laser, i-piolical piode umqhubi, i-fiber amplifier. Sikwabonelela ngeemodyuli ezininzi zokwenza ngokwezifiso, ezinje nge-1 * 4 Imodyuli yesigaba se-Ultra, ephantsi i-Ultra-I-VPI, kunye ne-Ultra-Speeliction Prilators Imodyuli, ngokuyintloko isetyenziswa kwiiyunivesithi nakumaziko.
Ndiyathemba ukuba iimveliso zethu ziya kuba luncedo kuwe kunye nophando lwakho.
