Umlawuli we-Bias we-Ultra Compact IQ Modulator Umlawuli we-Bias oZenzekelayo
Uphawu
•Ibonelela ngeendlela ezintathu zokukhetha ii-IQ modulators. Ifomathi yokuguquguquka ezimeleyo:
•I-QPSK, i-QAM, i-OFDM, i-SSB iqinisekisiwe
•Xhuma kwaye udlale:
Akukho mfuneko yokulinganisa ngesandla Yonke into izenzekela ngokuzenzekelayo
•I, iingalo ze-Q: ulawulo kwiindlela zePeak kunye ne-Null Umlinganiselo ophezulu wokuphela: 50dB max1
•Ingalo ye-P: ulawulo kwiindlela ze-Q+ kunye ne-Q- Ukuchaneka: ± 2◦
•Iprofayili ephantsi: 40mm(W) × 28mm(D) × 8mm(H)
•Uzinzo oluphezulu: ukusetyenziswa kwedijithali ngokupheleleyo Kulula ukuyisebenzisa:
•Ukusebenza ngesandla nge-mini jumper Ukusebenza kwe-OEM eguquguqukayo nge-UART2
• Iindlela ezimbini zokubonelela nge-voltages ze-bias: a. Ulawulo lwe-Bias oluzenzekelayo b. I-voltage ye-bias echazwe ngumsebenzisi
Isicelo
•LiNbO3 kunye nezinye ii-IQmodulators
•QPSK, QAM, OFDM, SSB njl.
•Uthumelo oluQondayo
Ukusebenza

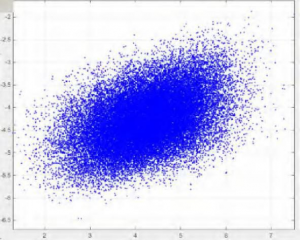

Umfanekiso 1. I-constellation (ngaphandle kwesilawuli)
Umfanekiso 2. I-QPSK Constellation (enesilawuli)

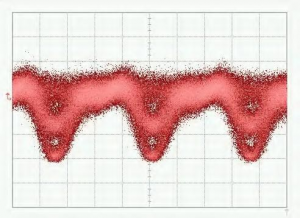

Umfanekiso 3. Ipateni ye-QPSK-Eye
Umfanekiso 5. Ipateni yeenkwenkwezi ze-16-QAM
Umfanekiso 4. I-QPSK Spectrum
Umfanekiso 6. I-Spectrum ye-16-QAM
Iinkcukacha
| Ipharamitha | Ubuncinci | Uhlobo | Ubuninzi | Iyunithi |
| Ulawulo lokusebenza | ||||
| Iingalo ze-I, ze-Q zilawulwaAkukho nto (Ubuncinci) okanyeIncochoyi (Ubuninzi) ingongoma | ||||
| Umlinganiselo wokuphela | I-MER1 | 50 | dB | |
| Ingalo ye-P ilawulwa kwiUmbuzo+ (ekunene ikota) okanyeQ-( khohlo ikota) ingongoma | ||||
| Ukuchaneka kwiQuad | −2 | +2 | isidanga2 | |
| Ixesha lokuzinzisa | 15 | 20 | 25 | s |
| Zombane | ||||
| I-voltage yamandla elungileyo | +14.5 | +15 | +15.5 | V |
| Amandla akhoyo asebenzayo | 20 | 30 | mA | |
| I-voltage yamandla engalunganga | -15.5 | -15 | -14.5 | V |
| Amandla angalunganga angoku | 8 | 15 | mA | |
| Uluhlu lwevolthi yemveliso | -14.5 | +14.5 | V | |
| Ubungakanani beDither | 1%Vπ | V | ||
| I-Optical | ||||
| Amandla okufaka optical3 | -30 | -8 | i-dBm | |
| I-wavelength yokufaka | 1100 | 1650 | nm | |
1. I-MER ibhekisa kwiModulator Extinction Ratio. Umlinganiselo wokuphela ofunyenweyo udla ngokuba ngumlinganiselo wokuphela kwemodulator ochazwe kwiphepha ledatha lemodulator.
2. Nceda uqaphele ukuba amandla okufaka e-optical awahambelani namandla okukhanya kwindawo ekhethiweyo ye-bias. Ibhekisa kumandla okukhanya aphezulu anokuthunyelwa yi-modulator kwi-controller xa i-voltage ye-bias isuka kwi-−Vπ ukuya kwi-+Vπ.
Indawo yomsebenzisi
Umfanekiso 5. Indibano
| Iqela | Umsebenzi | Ingcaciso |
| Cwangcisa kwakhona | Faka ijela uze uyikhuphe emva komzuzwana omnye | Seta kwakhona isilawuli |
| Amandla | Umthombo wamandla wesilawuli se-bias | I-V- iqhagamshela i-electrode engalunganga yombane |
| I-V+ iqhagamshela i-electrode elungileyo yombane | ||
| I-Middle port iqhagamshela kwi-electrode yomhlaba | ||
| I-Polar1 | I-PLRI: Faka okanye utsale ijumper | akukho jumper: Imo ye-null; enejumper: Imo ye-Peak |
| I-PLRQ: Faka okanye utsale i-jumper | akukho jumper: Imo ye-null; enejumper: Imo ye-Peak | |
| I-PLRP: Faka okanye utsale ijumper | akukho jumper: Imo ye-Q+; kunye nejumper: Imo ye-Q- | |
| I-LED | Ihlala ivuliwe | Ukusebenza phantsi kwemeko ezinzileyo |
| Ivuliwe okanye icinyiwe rhoqo emva kwemizuzwana eyi-0.2 | Ukucubungula idatha nokukhangela indawo yokulawula | |
| Ivuliwe okanye icinyiwe rhoqo emva kwemizuzwana eyi-1 | Amandla okufaka optical abuthathaka kakhulu | |
| Ivuliwe okanye icinyiwe rhoqo emva kwemizuzwana emi-3 | Amandla okufaka optical anamandla kakhulu | |
| I-PD2 | Qhagamshelana ne-photodiode | I-PD port idibanisa i-Cathode ye-photodiode |
| I-GND port iqhagamshela i-Anode ye-photodiode | ||
| IiVolthi zeBias | Ngaphakathi, i-Ip: I-Bias voltage yengalo ye-I | Ip: Icala elihle; Kwi: Icala elibi okanye umhlaba |
| Qn, Qp: I-Bias voltage yengalo ye-Q | Umbuzo: Icala elihle; Umbuzo: Icala elibi okanye umhlaba | |
| I-Pn, i-Pp: I-voltage ye-Bias yengalo ye-P | I-Pp: Icala elihle; I-Pn: Icala elingalunganga okanye umhlaba | |
| I-UART | Sebenzisa isilawuli nge-UART | 3.3: I-voltage yesalathiso se-3.3V |
| I-GND: Emhlabeni | ||
| I-RX: Ukwamkelwa kwesilawuli | ||
| TX: Ukuhanjiswa komlawuli |
1 I-Polar ixhomekeke kwisignali ye-RF yenkqubo. Xa kungekho signali ye-RF kwinkqubo, i-polar kufuneka ibe ntle. Xa isignali ye-RF inomlinganiselo omkhulu kunomgangatho othile, i-polar iya kutshintsha ukusuka kwi-positive ukuya kwi-negative. Ngeli xesha, i-Null point kunye ne-Peak point ziya kutshintshana. I-Q+ point kunye ne-Q- point ziya kutshintshana. I-Polar switch ivumela umsebenzisi ukuba atshintshe i-polar
ngokuthe ngqo ngaphandle kokutshintsha iindawo zokusebenza.
2Kuza kukhethwa ukhetho olunye kuphela phakathi kokusebenzisa i-photodiode yokulawula okanye ukusebenzisa i-photodiode yokulawula. Kucetyiswa ukuba kusetyenziswe i-photodiode yokulawula kwiimvavanyo zeLabhoratri ngezizathu ezibini. Okokuqala, i-photodiode yokulawula iqinisekisile iimpawu. Okwesibini, kulula ukulungisa amandla okukhanya okufakwayo. Ukuba usebenzisa i-photodiode yangaphakathi ye-modulator, nceda uqinisekise ukuba umsinga wokuphuma we-photodiode uhambelana ngqo namandla okufaka.
